Brand Name : Surplus
Model Number : Heaters For Semiconductors 01
Certification : ISO9001
Place of Origin : China
MOQ : 1 PCS
Price : Contact Us
Payment Terms : TT, Paypal, Western Union
Supply Ability : 50 PC/Month
Delivery Time : 10-15 working days
Packaging Details : Wooden Case or Carton Box
Supply voltage (V/Phase) : 400V 2Phase
Power(KW) : 10kw
Dimension : 660mm* 578mm*30mm
Type of temperature control : PT100 or J type
Application : semiconductor, solar, MEMs, and other technological industries
Frame Material : PTFE
Inside material : PFA
Cable length : 2 meters/3meters/others
Life Sciences
Fluid Heating
Heaters For Semiconductor are great for heating fluid baths to a constant temperature. These heaters are ideal for use in the semiconductor, pharmaceutical, and biomedical industries. First of all, these immersion heaters provide clean heat evenly and efficiently. Furthermore, they’re compact and highly customizable. They provide a maximum process work area, and consume a minimal amount of chemicals. Moreover, wetted surfaces feature all-PFA materials, and may be used in tanks made of PVDF, PFA, or quartz. Please contact us with inquiries about other tank materials.
These rugged and durable heaters come in grid, frame, and fence models, with outputs of 1.0 to 30.0 kW. Most importantly, they feature a low watt density (≤ 4 watts/in²) for a fast heating response. Furthermore, these heaters integrate easily into most process tanks. Provide Heateflex with your specifications and tank size, and let us build an immersion heater for you.
At the heart of these immersion heaters is the patented PreciseHeater heating coil, with a efficiency of > 99% and a MTBF of more than 10 years. Moreover, a microprocessor-based temperature controller regulates the heater output. Additionally, optional safety features include both platinum and embedded ground wires, a Type-J process thermocouple, and RTD over-temperature and process thermocouples.
Maximum heating temperature of these immersion heaters is 200º C (392º F), with a temperature accuracy of ± 0.1º C (contingent on customer’s facilitation). Grid heaters are typically ¾” high, and frame heaters 1 ½” high. Outputs range from 1.0 to 30.0 kW (dependent on customer voltage), and from 120 VAC to 480 VAC, 1 or 3-ph (dependent on wattage).
Heater Element | Heating Coil |
---|---|
Wetted Surfaces | PFA/PTFE |
Wattages | 1.0 – 20 kW |
Voltages | 120 – 480 VAC 1 or 3 phase |
Sizes (LxW) | 7x5 to 19x14 inch |
Height | 1-5/8 inch |
Temperature | 200°C (392°F) |
Hi-Limit Sensor | Type-J thermocouple |
Ground Wire | Encapsulated |
Lead Wire | 15-ft |
![]() |

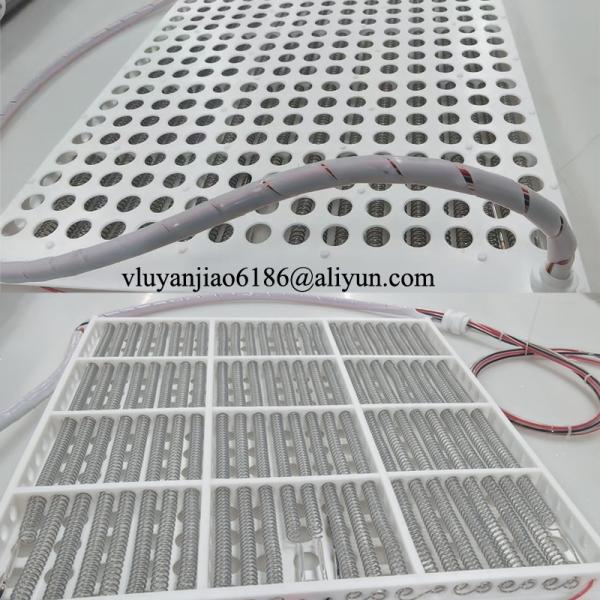

Thermocouple Type J 400V 2P 10KW PTFE Frame Heaters For Semiconductor 660mm* 578mm*30mm Images |
